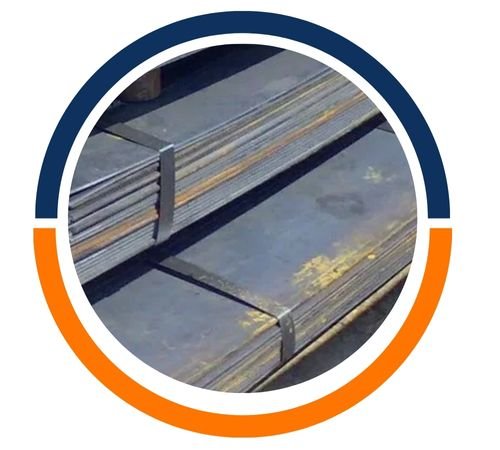

In the bustling industrial landscape of Abuja, Samuel Steels has established itself as a trusted name for robust and reliable materials. We take pride in being your go-to local manufacturer and supplier for specialized marine-grade steel, particularly the high-strength ABS AH36 Shipbuilding Steel Sheet and Plates. Our commitment is to provide Nigerian industries with top-tier materials that meet rigorous international standards, ensuring your projects are built on a foundation of quality and durability, right from the heart of the nation’s capital.
The ABS AH36 grade is specifically engineered for demanding marine environments. Its composition is a careful balance of elements like carbon, manganese, and micro-alloys, which work together to provide exceptional strength and toughness. This results in outstanding mechanical properties, including a high yield strength that can withstand immense pressures and impacts. The steel also offers excellent weldability, which is crucial for constructing large, complex vessel hulls without compromising the material’s integrity under stress.
STANDARD:Â ASTM A131, ASME SA131
PLATES QUALITY: AH 36 (Dead Soft Quality)
THICKNESS: 3/16″ – 4″, 4-60mm
WIDTH: 48″ – 120″, 2000 / 2500 / 3000mm
LENGTH: 96″ – 480″, 6000 / 8000 / 10000 / 12000 mm
| C | Si | Mn | P | S | Cr | Mo | Ni | Cu | Cb | V |
| 0.18 | 0.10/0.50 | 0.90/1.60 | 0.035 | 0.035 | 0.20 | 0.08 | 0.40 | 0.35 | 0.02/0.05 | 0.05/0.10 |
| Grade | Re | Rm | Elongation | Â |
| A50mm | A200mm | |||
| MPan | MPa | % | % | |
| AH36 | 355 | 490/620 | 22 | 19 |
| DNV | GL | LR | BV | CCS | NK | KR | RINA |
| NV A36 | GL A36 | LR A36 | BV AH36 | CCS A36 | KA36 | RA 36 | RINA AH36 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Samuel Steel is one of the most prominent manufacturers and suppliers of superior quality ABS AH36 Shipbuilding Steel Sheet and Plates in Abuja, Nigeria. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â
| theoretical weight | Thickness (mm) | Thickness (mm) | theoretical weight | ||
|---|---|---|---|---|---|
| Kg/m2 | Kg/ft2 | Kg/m2 | Kg/ ft2 | ||
| 47.10 | 4.376 Kg/ft2 | 6 | 25 | 196.25 | 18.962 Kg/ ft2 |
| 54.95 | 5.105 Kg/ft2 | 7 | 26 | 204.10 | 20.420 Kg/ ft2 |
| 86.35 | 8.751 Kg/ft2 | 11 | 32 | 251.20 | 25.525 Kg/ ft2 |
| 172.70 | 16.044 Kg/ft2 | 22 | 50 | 392.50 | 36.464 Kg/ ft2 |
| 62.80 | 5.834 Kg/ft2 | 8 | 28 | 219.80 | 21.879 Kg/ ft2 |
| 157.00 | 14.586 Kg/ft2 | 20 | 48 mm | 376.80 | 35.006 Kg/ ft2 |
| 78.50 | 7.293 Kg/ft2 | 10 | 30 mm | 235.50 | 23.337 Kg/ ft2 |
| 94.20 | 10.21 Kg/ft2 | 12 | 34 mm | 266.90 | 26.254 Kg/ ft2 |
| 125.60 | 11.669 Kg/ft2 | 16 | 40 mm | 314.00 | 29.172 Kg/ ft2 |
| 141.30 | 13.127 Kg/ft2 | 18 | 45 mm | 353.25 | 32.818 Kg/ ft2 |
| 109.90 | 10.939 Kg/ft2 | 14 | 35 mm | 274.75 | 27.713 Kg/ ft2 |
| 188.40 | 18.232 Kg/ft2 | 24 | |||
| Max. width | Thickness |
|---|---|
| Grade A | From to up to |
| 1370 | 1.70 to 1.80 |
| 1280 | 1.60 to 1.70 |
| 1440 | 1.80 to 1.90 |
| 1520 | 1.90 to 2.00 |
| 1170 | 1.49 to 1.60 |
| 2070 | 12.70 to 20.00 |
| 1590 | 2.00 to 2.20 |
| 1730 | 2.20 to 2.40 |
| 1880 | 2.60 to 2.80 |
| 1960 | 2.80 to 3.12 |
| 1800 | 2.40 to 2.60 |
| 2070 | 3.12 to 12.70 |
The primary use for these sheets and plates is, of course, in the construction of seafaring vessels. They form the critical backbone of ship hulls, decks, and other major structural components where strength and resistance to ocean forces are non-negotiable. Beyond shipbuilding, this versatile material is also perfectly suited for offshore platforms, heavy-duty industrial machinery, and large-scale structural projects in coastal areas. Essentially, any application that demands superior resistance to harsh conditions and heavy loading will benefit from the proven reliability of AH36 steel.
Samuel Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Abuja, Nigeria.
