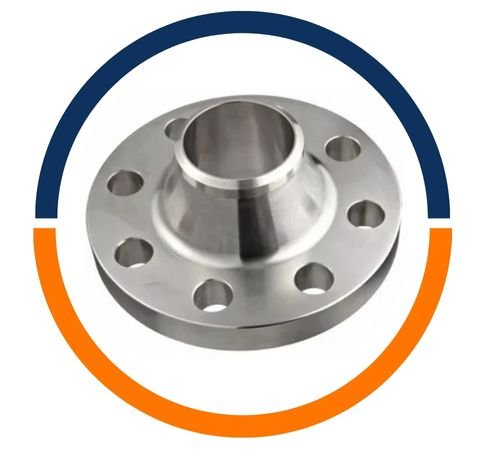

Operating from the heart of Abuja, Nigeria, Samuel Steels has built a strong reputation as a trusted partner for industrial supply. We specialize in providing robust and reliable solutions, with our Alloy Steel F1 Flanges standing as a prime example of our commitment to quality. We understand the demanding nature of local industries, which is why we ensure our flanges meet the highest standards, offering our clients the durability and performance needed to keep their critical operations running smoothly and efficiently.
The strength of our Alloy Steel F1 Flanges comes from their specific composition, which includes a careful balance of chromium and molybdenum. This mix gives the material its notable resistance to high temperatures and pressure, making it exceptionally tough. These flanges are designed to perform reliably under stress, maintaining their integrity in challenging environments where other materials might fail. It’s this dependable mechanical performance that makes them a preferred choice for demanding applications.
Alloy Steel Flanges Specification :Â ASTM A182 / ASME SA182
Dimension Standard :Â ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :Â ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :Â 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure :Â 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type :Â Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges :Â DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges :Â JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges :Â BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
| Grade | C | Mn | P | S | Si | Ni | Ch | Mo | Cb |
|---|---|---|---|---|---|---|---|---|---|
| F1 | 0.28 | 0.60 – 0.90 | 0.045 | 0.045 | 0.15 – 0.30 | – | – | 0.44-0.65 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| F1 | 485 | 275 | 20 | – | 143-192 |
| STANDARD | DIN WERKSTOFF NR. | DIN | UNS |
| ASTM A182 F1 Flanges | 1.5415 | 15M03 | K12822 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Size in (Inches) | Size in (Millimeter) | Number of Bolts | Bolt Size Of UNC | Length Of RF Stud | Size Of ISO Stud | Length Of Machine Bolts |
|---|---|---|---|---|---|---|
| Class 300 Flange | ||||||
| 1/2 | 15 | 4 | 1/2 | 65 | M14 | 55 |
| 3/4 | 20 | 4 | 5/8 | 75 | M16 | 65 |
| 1 | 25 | 4 | 5/8 | 75 | M16 | 65 |
| 1 1/4 | 32 | 4 | 5/8 | 85 | M16 | 70 |
| 1 1/2 | 40 | 4 | 3/4 | 90 | M20 | 75 |
| 2 | 50 | 8 | 5/8 | 90 | M16 | 75 |
| 2 1/2 | 65 | 8 | 3/4 | 100 | M20 | 85 |
| 3 | 80 | 8 | 3/4 | 110 | M20 | 90 |
| 3 1/2 | 90 | 8 | 3/4 | 110 | M20 | 95 |
| 4 | 100 | 8 | 3/4 | 115 | M20 | 95 |
| 5 | 125 | 8 | 3/4 | 120 | M20 | 110 |
| 6 | 150 | 12 | 3/4 | 120 | M20 | 110 |
| 8 | 200 | 12 | 7/8 | 140 | M24 | 120 |
| 10 | 250 | 16 | 1 | 160 | M27 | 140 |
| 12 | 300 | 16 | 1 1/8 | 170 | M30 | 145 |
| 14 | 350 | 20 | 1 1/8 | 180 | M30 | 160 |
| 16 | 400 | 20 | 1 1/4 | 190 | M33 | 165 |
| 18 | 450 | 24 | 1 1/4 | 195 | M33 | 170 |
| 20 | 500 | 24 | 1 1/4 | 205 | M33 | 185 |
| 24 | 600 | 24 | 1 1/2 | 230 | M39 | 205 |
Samuel Steel is a top manufacturer and supplier of high-quality Alloy Steel F1 Flanges products in Abuja, Nigeria. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
You’ll typically find our Alloy Steel F1 Flanges hard at work in sectors where safety and reliability are non-negotiable. They are essential components in high-temperature piping systems for power generation plants, in the intricate networks of chemical and petrochemical refineries, and throughout oil and gas processing facilities. Their ability to handle intense heat and pressure makes them perfect for connecting crucial sections of pipe, valves, and equipment, ensuring a secure and leak-proof seal that protects both the process and personnel.
Samuel Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Abuja, Nigeria.
