Carbon Steel A671 Gr CC 70 Pipe Manufacturer and Supplier in Abuja, Nigeria

Carbon Steel A671 Gr CC 70 Pipe

Worldwide Shipping

Largest
Inventory

Modern
Equipments

Expert
Engineers

Efficient Factories

Well
Maintained

Meet Samuel Steels, a reliable manufacturer and supplier of Carbon Steel A671 Gr CC 70 Pipes based in Abuja, Nigeria. They specialize in delivering top-notch welded carbon steel pipes that are built to withstand high temperatures and pressures. Crafted through electric fusion welding from high-quality pressure vessel plates, these pipes boast impressive structural integrity and durability. A671 Grade CC 70 is celebrated for its outstanding tensile strength, impact resistance, and corrosion resistance. Samuel Steels supplies these pipes for essential applications in the oil and gas, petrochemical, and power generation sectors, ensuring precise dimensions and strict compliance with ASTM standards for dependable, long-lasting performance.

Carbon Steel A671 Gr CC 70 Pipes Size Chart, ASME SA 672 Gr CC 70 Pipes Price in Port Harcourt, Carbon Steel A671 Gr CC 70 Pipes Weight Chart, Carbon Steel A671 Gr CC 70 Pipes Thickness, ASTM A671 Gr CC 70 Pipes Supplier in Ibadan, Carbon Steel A671 Gr CC 70 Pipes Exporter in Nigeria, Carbon Steel A671 Gr CC 70 Pipes Price List in Abuja, ASTM A671 Gr CC 70 Pipes Supplier in Kano, Carbon Steel A671 Gr CC 70 Pipes Exporter in Abuja, CS A671 Gr CC 70 Pipes Exporter in Abuja

CS A671 Gr CC 70 Seamless Pipes

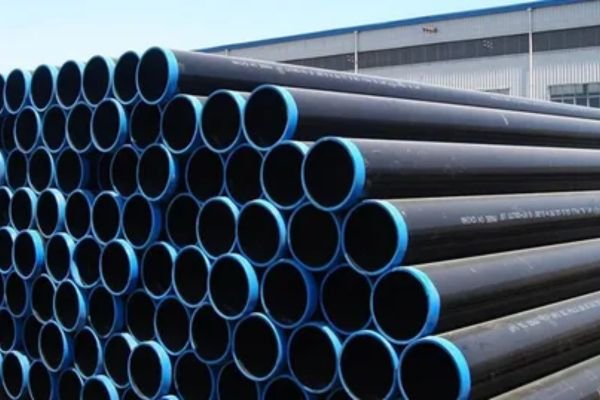

Carbon Steel A671 Gr CC 70 Welded Pipes

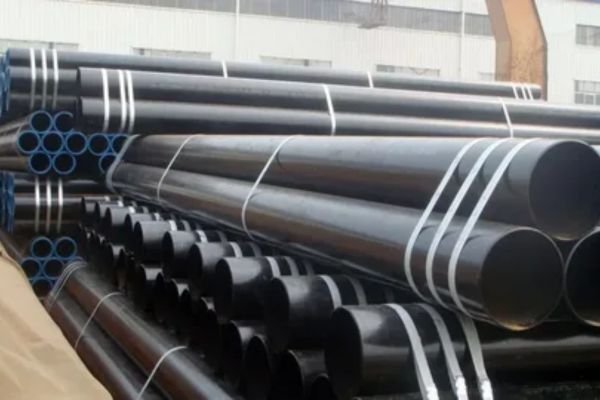

Carbon Steel A671 Gr CC 70 EFW Pipes

What is Carbon Steel A671 Gr CC 70 Pipe?

The Carbon Steel A671 Gr CC 70 Pipes are mainly made up of carbon (max 0.24%), manganese (0.90–1.60%), silicon (0.13–0.45%), phosphorus (max 0.035%), and sulfur (max 0.035%), with iron making up the rest. These pipes showcase a minimum tensile strength of 485 MPa and a yield strength of 260 MPa, along with an elongation of about 20%. They are known for their excellent toughness, weldability, and ability to handle pressure. This material consistently performs well in high-temperature and high-pressure settings, making it perfect for process pipelines, heat exchangers, and demanding fluid transport systems.

ASTM A671 Gr CC 70 Pipes Sizes in mm, ASME SA 671 Gr CC 70 Pipes Distributor in Abuja, Carbon Steel A671 Gr CC 70 Pipes in Port Harcourt, ASTM A671 Gr CC 70 Pipes Supplier in Abuja, Carbon Steel A671 Gr CC 70 Pipes Distributor in Nigeria, CS A671 Gr CC 70 Pipes Supplier in Abuja, ASTM A671 Gr CC 70 Pipes Exporter in Kano, ASME SA 672 Gr CC 70 Pipes Manufacturer in Abuja, Carbon Steel A671 Gr CC 70 Pipes Price List in Ibadan

Carbon Steel A671 Gr CC 70 Pipe Specification

Specification	ASTM A671 /ASME SA671
Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC
Type	EFW (ELECTRIC FUSION WELDED PIPES)
Material	A515 Gr 70
Outer Diameter Size	16″ NB To 100″ NB (Nominal Bore Size)
Wall Thickness	Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness
Packaging	Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Class Designation	CLASS 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 40, 41, 42
Length	5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size.
Other Testing	NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc.
Dimension	All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM, ASME, API.
Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
Coating	Epoxy Coating / Colour Paint Coating / 3LPE Coating.
Shipment & Transportation	By Road – Truck / Train, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes
Standards	CC70, JIS JPI-SB49

Carbon Steel A671 Gr CC 70 Pipe Chemical Composition

Specification	Steel grade	Chemical composition						Remarks
Specification	Steel grade	C	Si	Mn	P	S	Ti	Remarks
Pipes for pressure service ASTM A671 CC70	-/A45	-/0.17	–	0.98	0.035	0.035	–	A671/ A672
	-/A50	-/0.22	–
	CA55/A55	0.28	–
	-/B55	-/0.20	0.13 ~0.45
	CB60/B60	0.24
	CB65/B65	0.28
	CB70/C70	0.31		1.30
	-/C55	-/0.18		0.55 ~0.98
	CC60/C60	0.21		0.55 ~0.98
	CC65/C65	0.24		0.79 ~1.30
	CC70/C70	0.27		0.79 ~1.30

Carbon Steel A671 Gr CC 70 Pipe Mechanical Properties

Products	Steel Grade	BASE METAL MECHANICAL COMPOSITION				Welding point tensile strength (N/mm2)	Remarks
Products	Steel Grade	Yield point (N/mm2)	Tensile Stregth (N/mm2)	Test Pieces	Elongation (%)	Welding point tensile strength (N/mm2)	Remarks
Pipes for pressure service ASTM A671 CC70	-/A45	-/165	-/310~450	–	-/30	-/310~450	A671/ A672
	-/A50	-/185	-/345~485		-/28	-/345~485
	CA55/A55	205	380~515		27	380~515
	-/B55	-/205	-/380~515		-/27	-/380~515
	CB60/B60	220	415~550		25	415~550
	CB65/B65	240	450~585		23	450~585
	CB70/B70	260	485~620		21	485~620
	-/C55	-/205	-/380~515		-/27	-/380~515
	CC60/C60	220	415~550		25	415~550
	CC65/C65	240	450~585		23	450~585
	CC70/C70	260	485~620		21	485~620

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Carbon Steel A671 Gr CC 70 Pipe Pressure Rating

Maximum Allowable Pressure (psi)
NPS	Outside Diameter	Schedule
(in)	(in)	10	20	30	STD	40	60	XS	80	100	120	140	160	XXS
1/4	0.54				7985	7985		10798	10798
3/8	0.675				6606	6606		9147	9147
1/2	0.84				6358	6358		8575	8575				10908	17150
3/4	1.05				5273	5273		7187	7187				10220	14373
1	1.315				4956	4956		6670	6670				9316	13340
1 1/4	1.66				4133	4133		5638	5638				7380	11276
1 1/2	1.9				3739	3739		5158	5158				7247	10316
2	2.375				3177	3177		4498	4498				7097	8995
2 1/2	2.875				3460	3460		4704	4704				6391	9408
3	3.5				3024	3024		4200	4200				6132	8400
3 1/2	4				2769	2769		3896	3896
4	4.5				2581	2581		3670	3670		4769		5782	7339
5	5.563				2273	2273		3303	3303		4404		5505	6606
6	6.625				2071	2071		3195	3195		4157		5318	6390
8	8.625		1420	1574	1829	1829	2307	2841	2841	3375	4085	4613	5147	4971
10	10.75		1140	1399	1664	1664	2279	2279	2708	3277	3847	4558	5128	4558
12	12.75		961	1268	1441	1560	2160	1922	2644	3244	3843	4324	5042	3843
14	14	875	1092	1313	1313	1533	2079	1750	2625	3283	3829	4375	4921
16	16	766	956	1148	1148	1531	2009	1531	2585	3157	3733	4404	4882
18	18	681	849	1192	1021	1530	2042	1361	2553	3147	3743	4252	4848
20	20	613	919	1225	919	1455	1989	1225	2526	3138	3675	4288	4824
22	22	557	835	1114	835		1949	1114	2506	3063	3619	4176	4733
24	24	510	766	1147	766	1405	1978	1021	2489	3126	3700	4210	4786
30	30	510	817	1021	613			817
32	32	478	766	957	574	1054
34	34	450	721	901	540	992
36	36	425	681	851	510	1021
42	42		583	729	438	875

Top Manufacturer and Supplier of Carbon Steel A671 Gr CC 70 Pipe in Abuja, Nigeria

Samuel Steel is a top manufacturer and supplier of high-quality Carbon Steel A671 Gr CC 70 Pipe products in Abuja, Nigeria. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.

Carbon Steel A671 Gr CC 70 Pipes Price List in Ibadan, ASTM A671 Gr CC 70 Pipes Distributor in Abuja, Carbon Steel A519 Grade B Pipes in Port Harcourt, Carbon Steel A671 Gr CC 70 Pipes Supplier in Abuja, Carbon Steel A671 Gr CC 70 Pipes Distributor in Nigeria, ASME SA 671 Gr CC 70 Pipes Stockist in Kano, Carbon Steel A671 Gr CC 70 Pipes Supplier in Abuja, Carbon Steel A671 Gr CC 70 Pipes Exporter in Kano, ASTM A671 Gr CC 70 Pipes Sizes in mm, CS A671 Gr CC 70 Pipe Manufacturer in Abuja

Types of Carbon Steel A671 Gr CC 70 Pipe

CS A671 Gr CC 70 Pipes Exporter in Abuja, ASTM A671 Gr CC 70 Pipes Size Chart, Carbon Steel A671 Gr CC 70 Pipes Price in Port Harcourt, Carbon Steel A519 Grade B Pipes Weight Chart, ASTM A671 Gr CC 70 Pipes Thickness, Carbon Steel A519 Pipe Supplier in Ibadan, CS A671 Gr CC 70 Pipes Stockist in Kano, ASTM A671 Gr CC 70 Pipes Exporter in Nigeria, Carbon Steel A671 Gr CC 70 Pipes Price List in Abuja, Carbon Steel A671 Gr CC 70 Pipes Supplier in Kano, Carbon Steel A671 Gr CC 70 Pipes Exporter in Abuja

Uses of Carbon Steel A671 Gr CC 70 Pipe

Carbon Steel A671 Gr CC 70 Pipes find their place in various industries that need robust and temperature-resistant piping systems. You’ll often see them in oil and gas pipelines, refineries, power plants, petrochemical facilities, and pressure vessels. These pipes are perfect for transporting steam, gas, and other fluids under high pressure. They also play a crucial role in heat exchangers, boiler systems, and structural applications where mechanical stability is key. The A671 Gr CC 70 grade guarantees a long service life, excellent weldability, and resistance to thermal fatigue, making it a go-to choice for critical applications.
