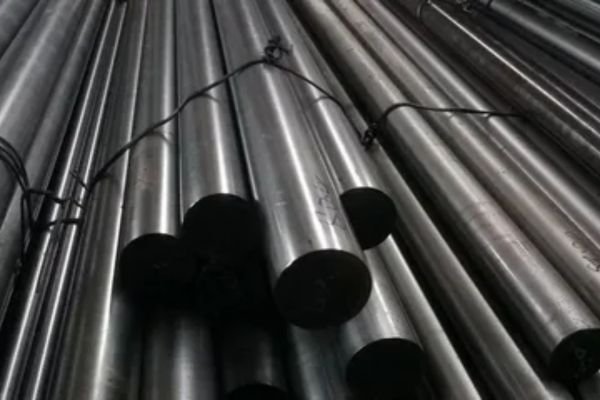

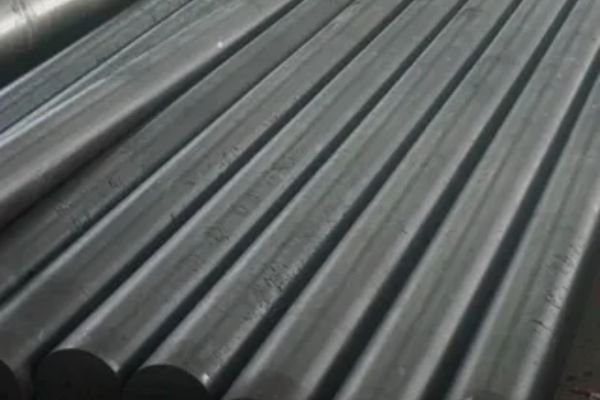

Samuel Steels stands out as a reputable manufacturer and supplier of Carbon Steel AISI 1018 Bars, proudly based in Abuja, Nigeria. The company has built a solid reputation for providing top-notch steel products that align with global standards, serving a variety of industries including automotive, construction, manufacturing, and engineering. AISI 1018 bars are particularly celebrated for their outstanding machinability, smooth surface finish, and reliable mechanical properties. Samuel Steels is dedicated to producing each item with cutting-edge technology and thorough quality checks, ensuring precision and dependability. With a strong focus on innovation, affordability, and customer satisfaction, the company has secured a trusted spot in Nigeria’s steel and industrial materials market.
AISI 1018 Carbon Steel Bars have a low carbon level of approximately 0.15–0.20%, along with 0.60–0.90% manganese, providing satisfactory strength and ductility. This type of steel has a tensile strength around 440 MPa and yield strength of about 370 MPa. It also offers excellent weldability and case hardening suitability. The steel possesses a Brinell hardness of 126 and is very suitable for precise components that need both machinability and strength. Its mechanical and chemical properties render it very suitable for general engineering applications.
| Specifications | : | AISI 1018, ASME SA1018 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Carbon Steel AISI 1018 Round Bars | : | 100mm-1200mm |

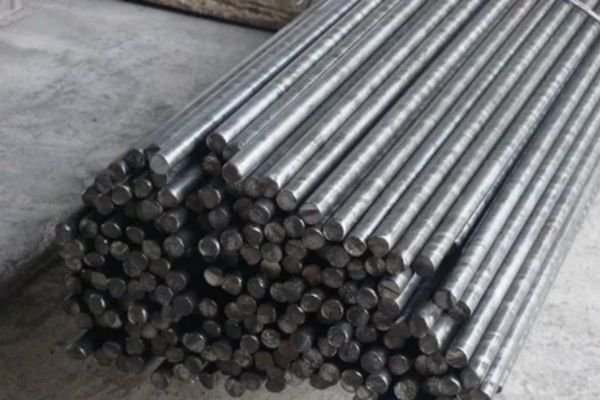

| Finish | : | Bright, Polish & Black |
| Length | : | 12m |

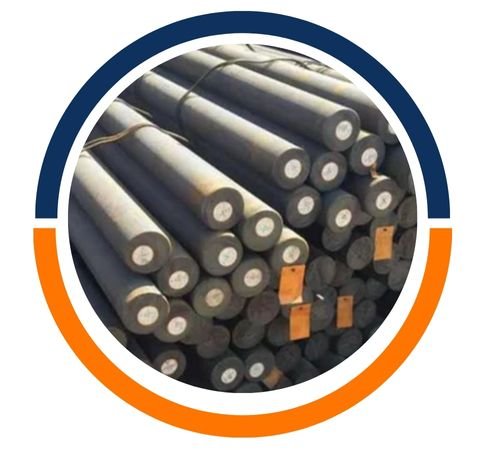

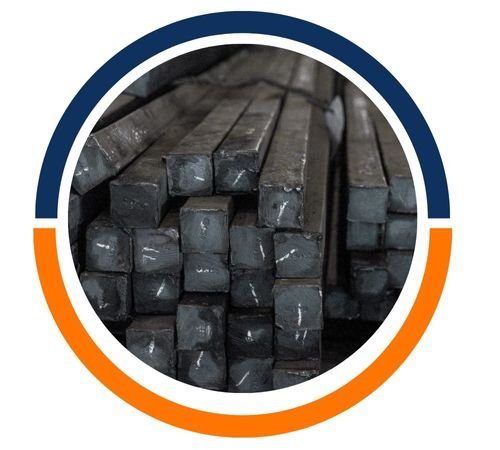

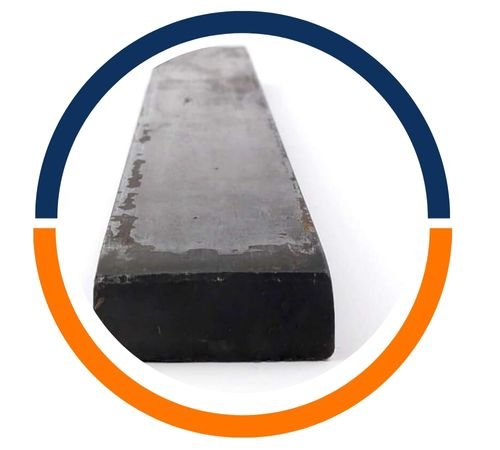

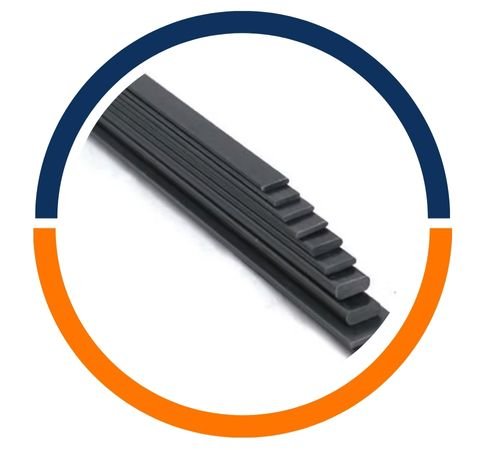

| Form | : | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | Mn | S | C | P | Si | Cr | Mo |
| AISI 1018 | 0.4-0.8 | 0.04 | 0.28-0.33 | 0.035 | 0.15-0.35 | 0.8-1.1 | 0.15-0.25 |
| Grades | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min | Hardness |
| AISI 1018 | 675 | 12 | 400 | 229 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
When it comes to composition, Carbon Steel AISI 1018 Bars mainly consist of carbon (0.15–0.20%), manganese (0.60–0.90%), along with trace amounts of phosphorus and sulfur. This blend results in a low-carbon steel that boasts excellent weldability and ductility. These bars deliver a minimum tensile strength of 440 MPa, a yield strength of around 370 MPa, and an elongation of 15–20%, which contributes to their toughness and wear resistance. They also respond favorably to carburizing and heat treatment processes, which enhance surface hardness while keeping the core ductile. These characteristics make AISI 1018 bars perfect for both cold- and hot-forming operations.
| STANDARD | WERKSTOFF NR. | UNS |
| AISI 1018 | 1.0453 | G10180 |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
| Diameter(Inch) | Carbon Steel A105 Bar Size | Diameter (millimeter) | Carbon Steel A105 Bar Size | Diameter (millimeter) | Carbon Steel A105 Bar Size | Diameter (millimeter2) | Carbon Steel A105 Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
| 1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
| 1/8 | 0.125 3.175 | 0.042 / 0.062496 |
| 3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
| 5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
| 7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
| 3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
| 1/4 | 0.25 6.35 | 0.167 / 0.248496 |
| 5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
| 9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
| 3/8 | 0.375 9.525 | 0.376 / 0.559488 |
| 1/2 | 0.5 12.7 | 0.668 / 0.993984 |
| 7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
| 9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
| 11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
| 5/8 | 0.625 15.875 | 1.043 / 1.551984 |
| 3/4 | 0.75 19.05 | 1.502 / 2.234976 |
| 7/8 | 0.875 22.225 | 2.045 / 3.04296 |
| 13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
| 15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
| 1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
| 1 | 1 25.4 | 2.671 / 3.974448 |
| 1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
| 1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
| 1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
| 1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
AISI 1018 Bars find extensive applications in automotive components, machinery parts, shafts, pins, spindles, and gears, thanks to their superior machinability and balanced strength. They are particularly well-suited for cold-headed bolts, studs, axles, and fittings, as well as for structural and mechanical applications that require moderate strength and high ductility. Additionally, these bars are utilized in tool manufacturing, construction equipment, and industrial fixtures that demand precise dimensions and excellent surface finishes. Their versatility, cost-effectiveness, and ease of fabrication make AISI 1018 bars a go-to choice across various engineering and manufacturing sectors.
