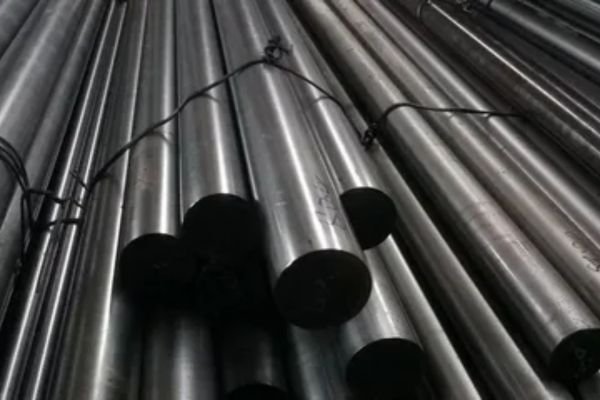

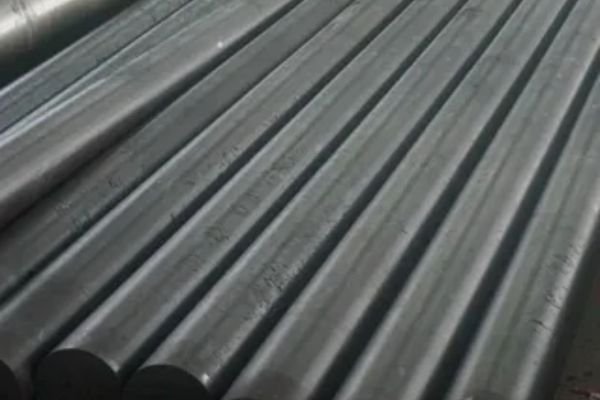

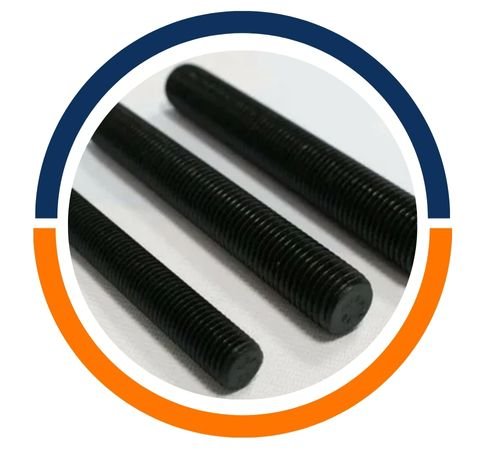

Meet Samuel Steels, a reliable manufacturer and supplier of top-notch **Carbon Steel EN-1A Bars** right from **Abuja, Nigeria**. With a strong focus on precision engineering and exceptional quality, this company delivers bars that align with international standards for strength, machinability, and durability. These bars are crafted to cater to a variety of industrial needs, ensuring outstanding performance in both mechanical and structural applications. Samuel Steels prides itself on rigorous quality control, cutting-edge production methods, and prompt delivery, making it a go-to choice for clients in the automotive, construction, and manufacturing sectors, both in Nigeria and beyond.
The **Carbon Steel EN-1A Bars** are primarily made up of **carbon (0.07–0.15%)**, **manganese (0.8–1.2%)**, along with small amounts of **sulphur and phosphorus** to boost machinability. This steel boasts a **tensile strength of about 370–460 MPa**, a **yield strength of roughly 220 MPa**, and a **Brinell hardness ranging from 100 to 130 HB**. It provides excellent machinability, moderate strength, and a nice surface finish, making it perfect for components that need precise machining without the requirement for high tensile strength or hardness.
| Grade | en1a |
|---|---|
| Specification | BS970: 1955 EN1A, BS970/PD970: 1970 onwards 230M07. |

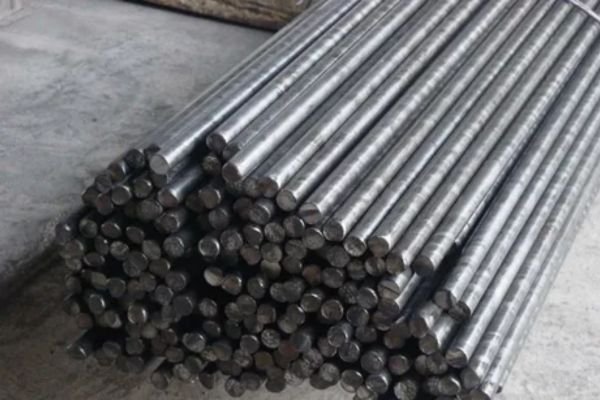

| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |

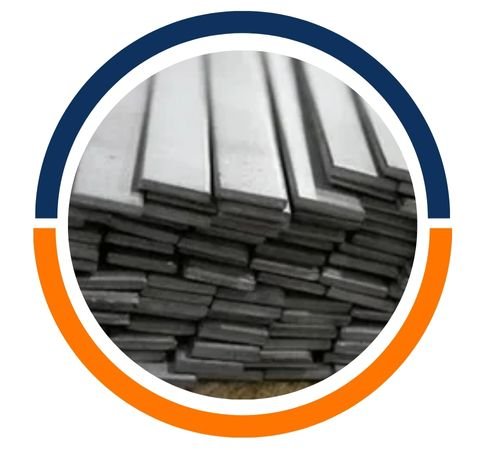

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

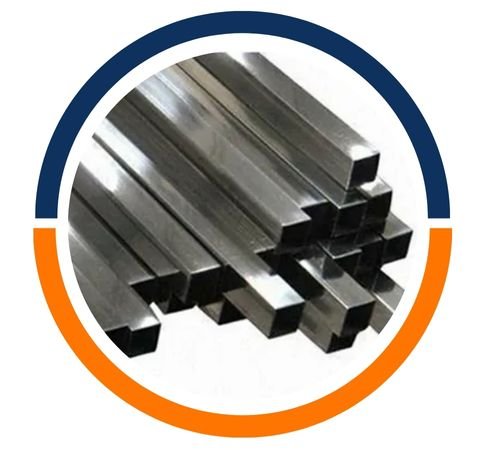

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |

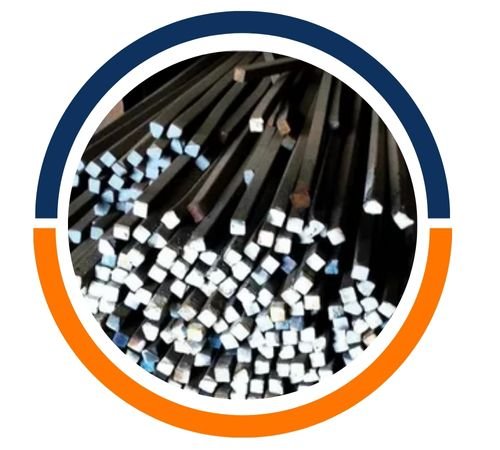

| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, peeled, slit rolled edge, hot rolled, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |

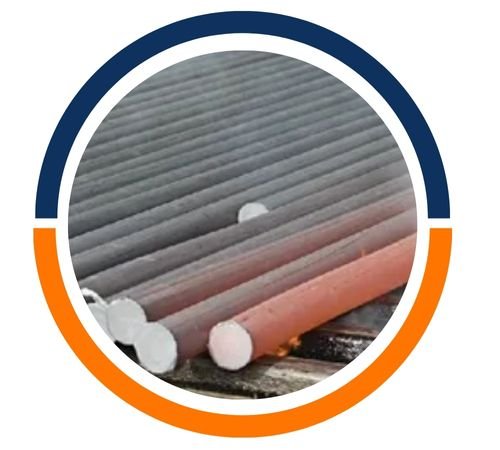

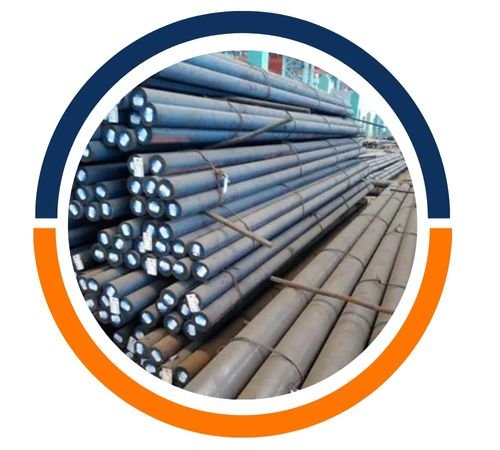

| Technique | en1a Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | en1a Welding Rod, Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
230M07 (EN1A) Specification Chemical composition | |
|---|---|
Carbon | 0.15% max |
Silicon | 0.40% max |
Manganese | 0.90-1.30% |
Sulphur | 0.25-0.35% |
Phosphorus | 0.070 Max |
Chromium | – |
Molybdenum | – |
Nickel | – |
Lead | 0.15-0.35% (Where specified) |
230M07 (EN1A) – mechanical properties in cold drawn condition | ||
|---|---|---|
Max Stress | 370-480 n/mm2 Min | dependent on ruling section |
Yield Stress | 240-400 n/mm2 Min | dependent on ruling section |
0.2% Proof Stress | 225-360 n/mm2 Min | dependent on ruling section |
Elongation | 6-10% Min | dependent on ruling section |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
10 mm | 3, 5 mm |
12 mm | 3, 5, 6 mm |
13 mm | 3 mm |
16 mm | 3 mm |
20 mm | 3, 5, 6, 8, 10, 12 |
25 mm | 3, 5, 6, 8, 10, 12, 16, 20 |
30 mm | 3, 5, 6, 8, 10, 12, 16, 20, 25 |
40 mm | 3, 5, 6, 8, 10, 12, 16, 20, 25, 30 |
50 mm | 3, 5, 6, 8, 10, 12, 16, 20, 25, 30 |
60 mm | 3, 6, 8, 10, 12, 16, 20, 25, 30 |
70 mm | 3, 5, 6, 8, 10, 12, 16, 20, 25 |
80 mm | 5, 6, 8, 10, 12, 16, 20, 25 |
90 mm | 6, 10, 12, 16 |
100 mm | 3, 5, 6, 8, 10, 12, 16, 20, 25, 30, 40, 50 |
125 mm | 10, 25, 50 |
150 mm | 6, 10, 12, 16, 20, 25, 30, 40, 50 |
200 mm | 10, 12, 20, 25, 30, 50 |
You’ll find **Carbon Steel EN-1A Bars** widely utilized in industries that need easily machinable materials for precision parts. They’re commonly found in **automobile components**, **screws, bolts, nuts, shafts, and spindles**. Additionally, they’re used in **fittings, studs, and connectors** where accurate dimensions and a fine surface finish are crucial. Thanks to their superb machinability, EN-1A bars are ideal for **turning, drilling, and milling operations**. Their cost-effectiveness and reliability make them a great fit for **mass production** in engineering, manufacturing, and machinery sectors, both in Nigeria and on the international stage.
