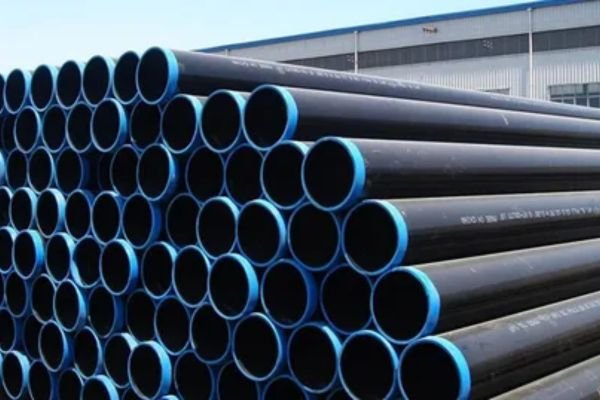

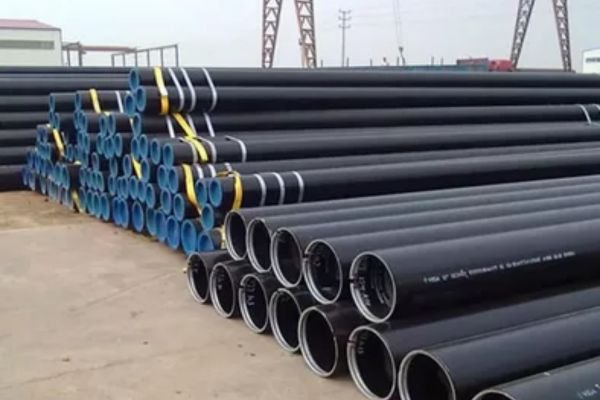

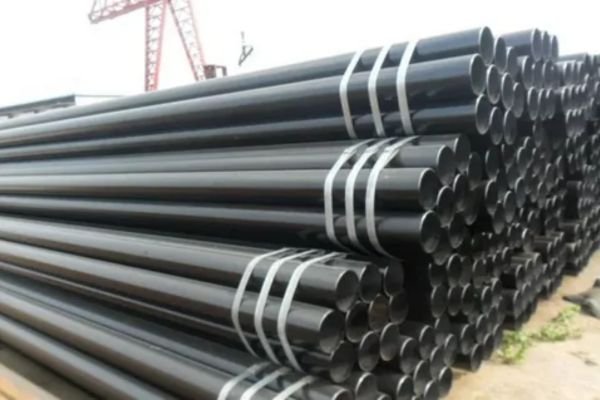

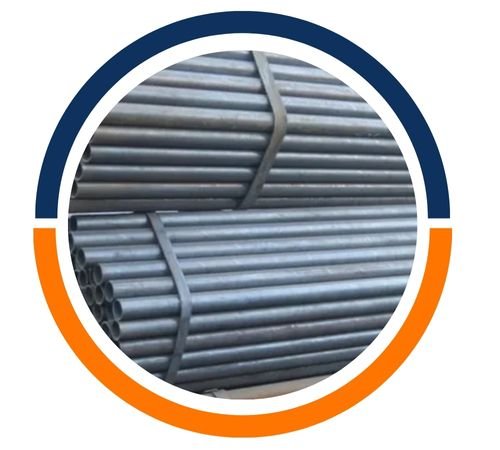

Benjamin Tubefittings is a reputable manufacturer and supplier located in Abuja, Nigeria, specializing in high-quality Carbon Steel JIS G3454 Pipes. Known for their precision in manufacturing and commitment to international standards, the company guarantees that each pipe offers reliable performance, durability, and resistance to corrosion. These pipes are specifically designed for industrial and commercial uses that demand high strength and the ability to withstand pressure. Benjamin Tubefittings caters to various sectors, including oil and gas, construction, chemical processing, and power generation, providing carbon steel pipes that ensure long-lasting performance, leak-proof connections, and consistent quality across diverse piping systems.
The Carbon Steel JIS G3454 Pipes are made from a blend of carbon, manganese, phosphorus, sulfur, and silicon, which together create a perfect balance of mechanical strength, toughness, and corrosion resistance. The carbon content boosts hardness and tensile strength, while manganese enhances ductility and impact resistance. Typically, these pipes showcase a tensile strength of about 330–430 MPa and a yield strength of around 195–245 MPa. Their impressive mechanical properties enable them to endure high pressure, temperature changes, and mechanical stress, ensuring dependable and safe performance in challenging industrial settings.
| Standard | : | JIS G3454 |
| JIS G3454 Grade | : | STPG 410, STPG 370 |
| JIS G3454 Outer Dimensions | : | 6mm – 150mm |
| JIS G3454 Wall Thickness | : | 1.0mm – 20 mm THK |
| JIS G3454 | Elongation % | ||||
|---|---|---|---|---|---|
| C | Si | Mn | P | S | |
| STPG 370 | 0.25 max. | 0.35 max. | 0.30 to 0.90 | 0.040 max. | 0.040 max. |
| STPG 410 | 0.30 max. | 0.35 max. | 0.30 to 1.00 | 0.040 max. | 0.040 max. |
| JIS G3454 | Tensile strength | Yield point or proof stress | Elongation % | |||
|---|---|---|---|---|---|---|
| kgf/mm2 {N/mm2} | kgf/mm2 {N/mm2} | No.11 and No.12 test pieces | No. 5 test pieces | No. 4 test piece | ||
| Longitudinal | Transverse | Longitudinal | Transverse | |||
| STPG 370 | 38 {373}min | 22{216} min | 30 min | 25 min | 23 min | 28 min |
| STPG 410 | 42{412}min | 25{245} min | 25 min | 20 min | 19 min | 24 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel JIS G3454 Pipe products in Abuja, Nigeria. Specializing in premium steel materials, we offer a comprehensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong focus on timely delivery and exceptional customer service, Jaxon Steel ensures the supply of top-grade materials that provide superior performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel JIS G3454 Pipe needs.
| Permissible Specified Outside Diameter and Specified Wall Thickness | ||
Specified Outside Diameter D mm (in.) | Specified Wall Thickness t mm (in.) | |
| Special Light Sizes a | Regular Sizes | |
| ≥ 10.3 (0.405) to < 13.7 (0.540) | — | ≥ 1.7 (0.068) to ≤ 2.4 (0.094) |
| ≥ 13.7 (0.540) to < 17.1 (0.675) | — | ≥ 2.2 (0.088) to ≤ 3.0 (0.118) |
| ≥ 17.1 (0.675) to < 21.3 (0.840) | — | ≥ 2.3 (0.091) to ≤ 3.2 (0.125) |
| ≥ 21.3 (0.840) to < 26.7 (1.050) | — | ≥ 2.1 (0.083) to ≤ 7.5 (0.294) |
| ≥ 26.7 (1.050) to < 33.4 (1.315) | — | ≥ 2.1 (0.083) to ≤ 7.8 (0.308) |
| ≥ 33.4 (1.315) to < 48.3 (1.900) | — | ≥ 2.1 (0.083) to ≤ 10.0 (0.394) |
| ≥ 48.3 (1.900) to < 60.3 (2.375) | — | ≥ 2.1 (0.083) to ≤ 12.5 (0.492) |
| ≥ 60.3 (2.375) to < 73.0 (2.875) | ≥ 2.1 (0.083) to ≤ 3.6 (0.141) | > 3.6 (0.141) to ≤ 14.2 (0.559) |
| ≥ 73.0 (2.875) to < 88.9 (3.500) | ≥ 2.1 (0.083) to ≤ 3.6 (0.141) | > 3.6 (0.141) to ≤ 20.0 (0.787) |
| ≥ 88.9 (3.500) to < 101.6 (4.000) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 22.0 (0.866) |
| ≥ 101.6 (4.000) to < 168.3 (6.625) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 25.0 (0.984) |
| ≥ 168.3 (6.625) to < 219.1 (8.625) | ≥ 2.1 (0.083) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 40.0 (1.575) |
| ≥ 219.1 (8.625) to < 273.1 (10.750) | ≥ 3.2 (0.125) to ≤ 4.0 (0.156) | > 4.0 (0.156) to ≤ 40.0 (1.575) |
| ≥ 273.1 (10.750) to < 323.9 (12.750) | ≥ 3.6 (0.141) to ≤ 5.2 (0.203) | > 5.2 (0.203) to ≤ 45.0 (1.771) |
| ≥ 323.9 (12.750) to < 355.6 (14.000) | ≥ 4.0 (0.156) to ≤ 5.6 (0.219) | > 5.6 (0.219) to ≤ 45.0 (1.771) |
| ≥ 355.6 (14.000) to < 457 (18.000) | ≥ 4.5 (0.177) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 457 (18.000) to < 559 (22.000) | ≥ 4.8 (0.188) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 559 (22.000) to < 711 (28.000) | ≥ 5.6 (0.219) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 45.0 (1.771) |
| ≥ 711 (28.000) to < 864 (34.000) | ≥ 5.6 (0.219) to ≤ 7.1 (0.281) | > 7.1 (0.281) to ≤ 52.0 (2.050) |
| ≥ 864 (34.000) to < 965 (38.000) | — | ≥ 5.6 (0.219) to ≤ 52.0 (2.050) |
| ≥ 965 (38.000) to < 1422 (56.000) | — | ≥ 6.4 (0.250) to ≤ 52.0 (2.050) |
| ≥ 1422 (56.000) to < 1829 (72.000) | — | ≥ 9.5 (0.375) to ≤ 52.0 (2.050) |
| ≥ 1829 (72.000) to < 2134 (84.000) | — | ≥ 10.3 (0.406) to ≤ 52.0 (2.050) |
These Carbon Steel JIS G3454 Pipes find extensive use in water supply, gas distribution, plumbing, and industrial piping systems. They are ideal for applications that require exceptional durability and strength, such as construction projects, chemical plants, and power generation facilities. With excellent weldability and machinability, these pipes facilitate efficient installation and maintenance. Their corrosion resistance and robust mechanical properties guarantee long-term reliability, making them a top choice for both commercial and industrial applications where safety, performance, and efficiency are paramount.
Samuel Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Abuja, Nigeria.
