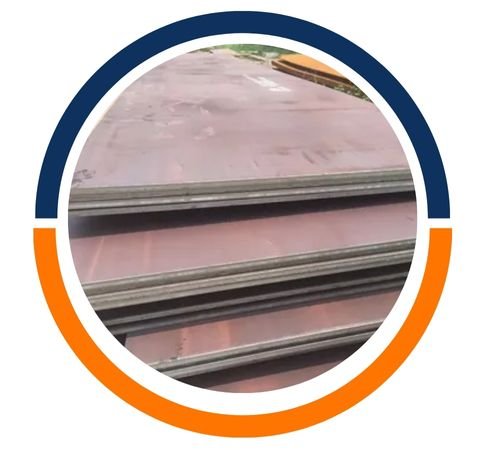

Samuel Steels, located in Abuja, Nigeria, stands out as a top manufacturer and supplier of DILLIDUR 500VAR Sheets and Plates. These high-performance steel products are crafted to deliver outstanding hardness, wear resistance, and durability, making them perfect for heavy-duty industrial and engineering tasks. With a commitment to precision manufacturing and rigorous quality control, Samuel Steels provides DILLIDUR 500VAR sheets and plates that meet the tough standards of industries like mining, construction, and material handling. Thanks to their superior mechanical properties and toughness, these steel products are the go-to choice for engineers, contractors, and fabricators looking for dependable solutions for components that face high abrasion and impact.
DILLIDUR 500VAR Sheets and Plates are made from premium alloy steel, featuring a carefully controlled chemical composition and advanced heat treatment processes. They boast remarkable hardness, high tensile and yield strength, and excellent impact resistance, making them ideal for high-wear and high-stress applications. Even under extreme conditions, the steel maintains its dimensional stability and offers good weldability and machinability, despite its impressive hardness. This combination of toughness, abrasion resistance, and structural integrity ensures long-lasting reliability for heavy-duty industrial components.
Item: Dillidur 500VAR
Thickness : 5mm to 150mm
Length : 6,000mm to 12,000mm
Width : 1,500mm to 2,500mm
Heat Treatment: N, Q+T
Surface Point : EP, PE, HDP, SMP, PVDF
| C | Si | Mn | P | S | Mo | Ni | Cr | V | Nb | B |
| ≤ 0.30 | ≤ 0.50 | ≤ 1.60 | ≤ 0.025 | ≤ 0.010 | ≤ 0.50 | ≤ 1.00 | ≤ 1.50 | ≤ 0.08 | ≤ 0.05 | ≤ 0.005 |
| Mechanical | Mpa, min | Charpy V Impact Test | ||||
| DILLIDUR 500VAR | HARDNESS BHN | Tensile | Yield | % EL | longitudinal | Degree |
| 470/530 | 1600 | 1100 | 9% | J | -40 | |
| 45 | ||||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | Â |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
Samuel Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Abuja, Nigeria.
